What Foundation Do You Need for an Enclosed Gazebo?

Home / Blog / What Foundation Do You Need for an Enclosed Gazebo?

What foundation do you need for an enclosed gazebo? A flat, level, solid surface that extends at least 3 inches beyond the gazebo’s outside walls on every side, and 3 to 6 inches is better. Westview says its gazebos can go on almost any level surface: a concrete slab, pavers or tile stones, or a wood or synthetic deck. For a gazebo that covers a hot tub or swim spa, a reinforced concrete pad is the safest choice because of the weight.

You do not need to pour a basement or footings. What you need is a surface that will not settle, crack or tilt under the gazebo plus what is inside it.

Foundation Types Compared

Foundation Best for Watch out for
Concrete slab Hot tubs, swim spas and every model size. Permanent, level and easy to anchor to. Needs proper base prep and curing time. Slope it slightly so water drains away.
Wood or synthetic deck Studios, offices and lounge use. Westview says gazebos set up easily on decks. A hot tub concentrates thousands of pounds in a small area. Have the framing checked first.
Pavers or tile stone Smaller models and lighter loads. Westview says pavers work very well as a base. Needs a compacted gravel base and edging. Pavers shift if the base is poor.
Compacted gravel Budget builds with a light load. Westview says it can be done but is harder because you must create and maintain a level surface. Not ideal under a heavy tub.

Concrete Slab: The Default Choice

Most customers extend their existing hot tub pad so it also covers the gazebo footprint. Westview’s recommendation for hot tub and swim spa use is a reinforced concrete pad. Typical residential practice is a slab at least 4 inches thick, with more thickness and rebar for large tubs or swim spas. Your contractor should size it to your tub’s filled weight and your soil, so confirm the details with them rather than copying a number from a blog.

Give the slab a slight slope away from the house so water does not pool. If you can, make it a bit bigger than the minimum, especially in front of the entrance, where the extra concrete gives you a landing and makes the gazebo look like part of the yard rather than an add-on.

Aspen 12x20 gazebo frame under construction on a poured concrete base with a ladder inside and an open roof

Wood or Synthetic Deck

Westview says its gazebos can be set up easily on wood or synthetic decking. Check one thing before you do it: the deck must handle the load. Standard residential decks are commonly designed for roughly 40 to 50 pounds per square foot of live load. A filled hot tub can put several thousand pounds on about 50 to 65 square feet, which works out to far more than that. Have a structural engineer or experienced contractor check the joists, posts and footings, and expect to add framing. Our guide to anchoring a gazebo to a deck or house explains how to fasten into joists.

Pavers and Gravel

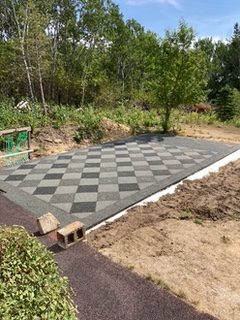

Interlocking pavers or stone on a compacted gravel base work well when the base is built correctly. A common approach is at least 4 inches of compacted crushed stone, leveled with a straightedge or laser level and edged so the pavers cannot creep. Pavers suit smaller gazebos and lighter loads. For larger models, a heavy hot tub or a swim spa, go with concrete. Gravel alone is the weakest option, and loose stone can settle under concentrated weight.

How Big Should the Foundation Be?

Westview recommends the pad or deck be at least 3 inches larger than the outside dimensions of the gazebo on every side, and 3 to 6 inches is better. The roof overhangs the walls by 5 to 10 inches depending on the model, so leave clear space around it. Size from the exterior wall dimensions on the model page, not the name. A “12×14” is about 11.5 by 13.4 feet at the walls.

Model (outside walls) Minimum pad (+3 in per side) Better (+6 in per side)
Brentwood 10×10 (113 3/8″ x 113 3/8″) about 9’11” x 9’11” about 10’5″ x 10’5″
Aspen 12×14 (137 3/8″ x 160 5/8″) about 11’11” x 13’11” about 12’5″ x 14’5″
Colorado 12×16 (137 3/8″ x 184 5/8″) about 11’11” x 15’11” about 12’5″ x 16’5″
Brentwood 16×24 (about 15.3′ x 23.75′) Westview suggests a 16′ x 25′ pad

Dimensions come from the model pages for the Brentwood, Aspen and Colorado. Always check the exact numbers for your size before you pour. Going slightly large costs little. Discovering the pad is an inch short can be expensive.

Aerial view of an Aspen 12x14 gazebo with a terracotta roof and skylight on a paver patio in a landscaped yard

How Much Load Are You Planning For?

Gazebos are lighter than most people expect, but not light. Westview lists the Aspen 12×12 at a little under 1,400 pounds, the Colorado 12×16 at over 1,700 pounds, the Brentwood 14×24 at roughly 2,890 pounds and the Denali 16×28 at 3,395 pounds. Add the filled weight of your hot tub or swim spa from the manufacturer’s spec sheet, plus people. That total is what the foundation has to carry.

When to Prepare the Foundation

Build the pad before the gazebo ships so you can assemble as soon as the crate arrives. If your site is not ready, ask about storage when you order. Westview’s shipping policy says storage charges apply to shipments not picked up within the free storage time set by its partner carriers, and some model pages mention longer complimentary storage, so confirm the terms for your order. Our delivery guide covers the timeline.

Also note that Westview’s warranty excludes problems caused by an improper or inadequate ground or floor, so the foundation is not a place to cut corners.

Next Steps

Check whether you need a permit with the permit guide, then see the installation guide for the build itself. If you are still choosing a size, read the sizing guide and how to choose a spa gazebo. Questions about your pad? Call 1-800-895-1972 or see Westview’s installation and shipping answers.
